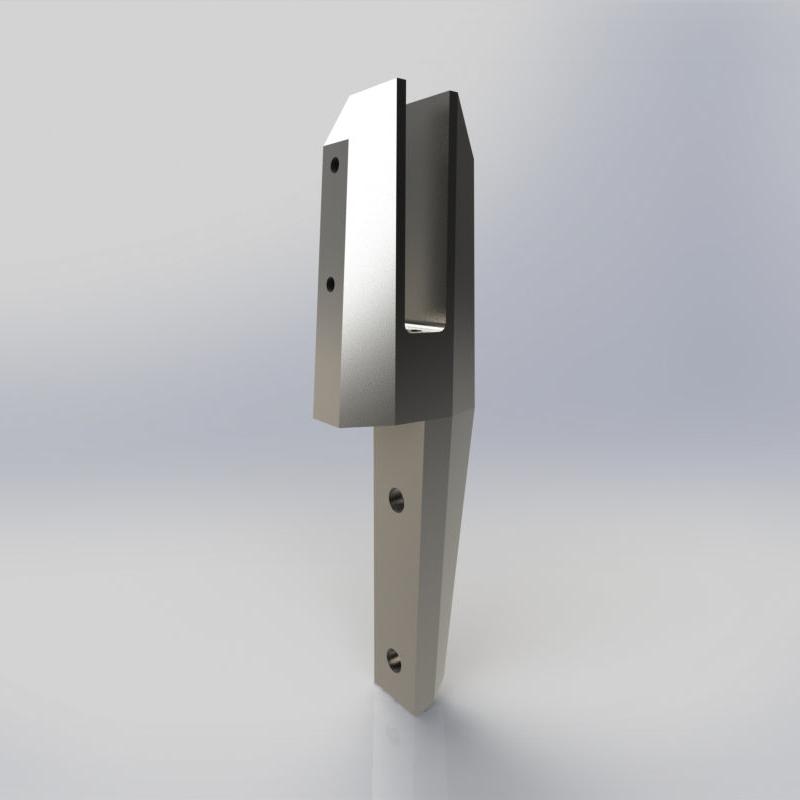

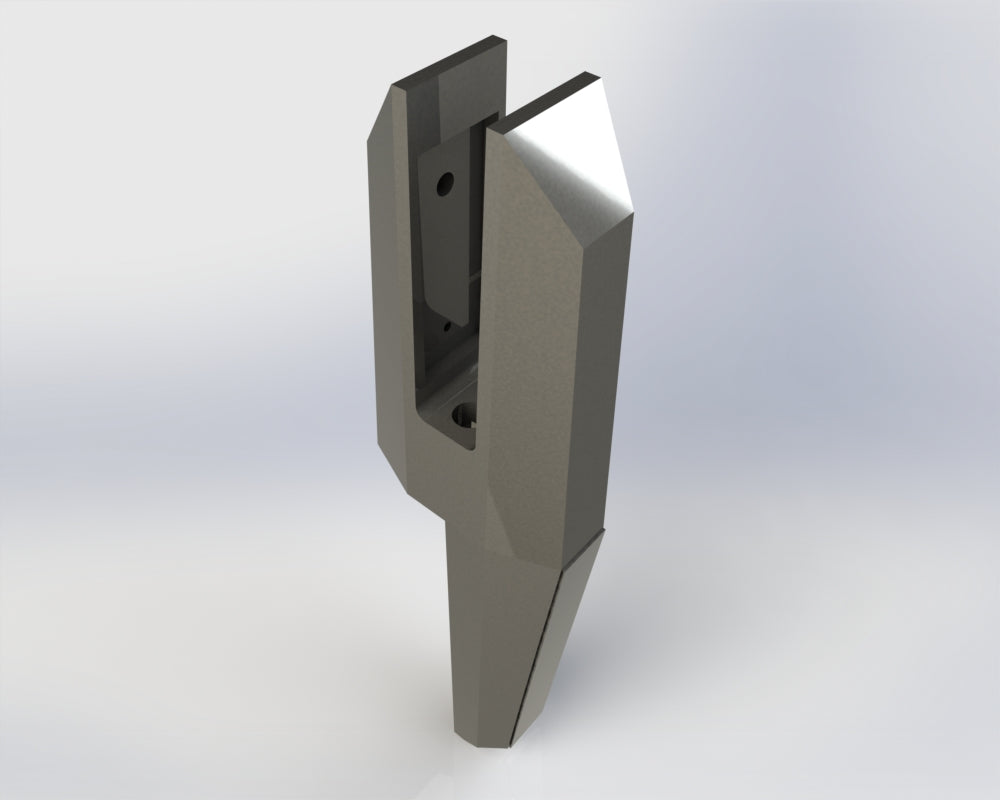

Edge Mounted Mini Post Spigot with Tilt-Lock Glass Adjustment System
Edge Mounted Mini Post Spigot with Tilt-Lock Glass Adjustment System
Couldn't load pickup availability
Smart design for a seamless, frameless finish.
The Edge Mounted Mini Post Spigot with Tilt-Lock Glass Adjustment System is designed for contemporary glass balustrades where clean lines and maximum transparency are key. Its side-mount configuration allows for uninterrupted views and an elegant, floating glass effect — perfect for balconies, terraces, and stairways.
Key Features
-
Innovative Tilt-Lock Adjustment System:
Effortlessly align glass panels after installation with the built-in Tilt-Lock mechanism. This unique feature enables precise ±3° adjustment, ensuring perfect vertical alignment across your entire balustrade without the need for repositioning or re-drilling. -
Space-Saving Edge Mount Design:
Designed for mounting to the side of a balcony, deck, or stair structure, this spigot frees up valuable floor space while delivering a minimalist, frameless appearance. -
Premium Stainless Steel Construction:
Manufactured from Duplex 2205 stainless steel, providing exceptional corrosion resistance and structural strength — ideal for both indoor and outdoor applications, including coastal and poolside environments. -
Glass Compatibility:
Suitable for 12 mm to 17.52 mm toughened or laminated glass, using interchangeable rubber gaskets for a secure and vibration-free hold. -
Stylish and Functional:
The brushed or mirror-polished finish complements any architectural setting, from luxury residential spaces to commercial installations. - Load Requirements: When used with the appropriate glass specifications and design these Mini Post meet various loading requirements to meet building regulations Horizontal UDL loadings from 0.36kN/m to 1.5kN/m (low level railing to areas with pedestrian traffic such as walkways).

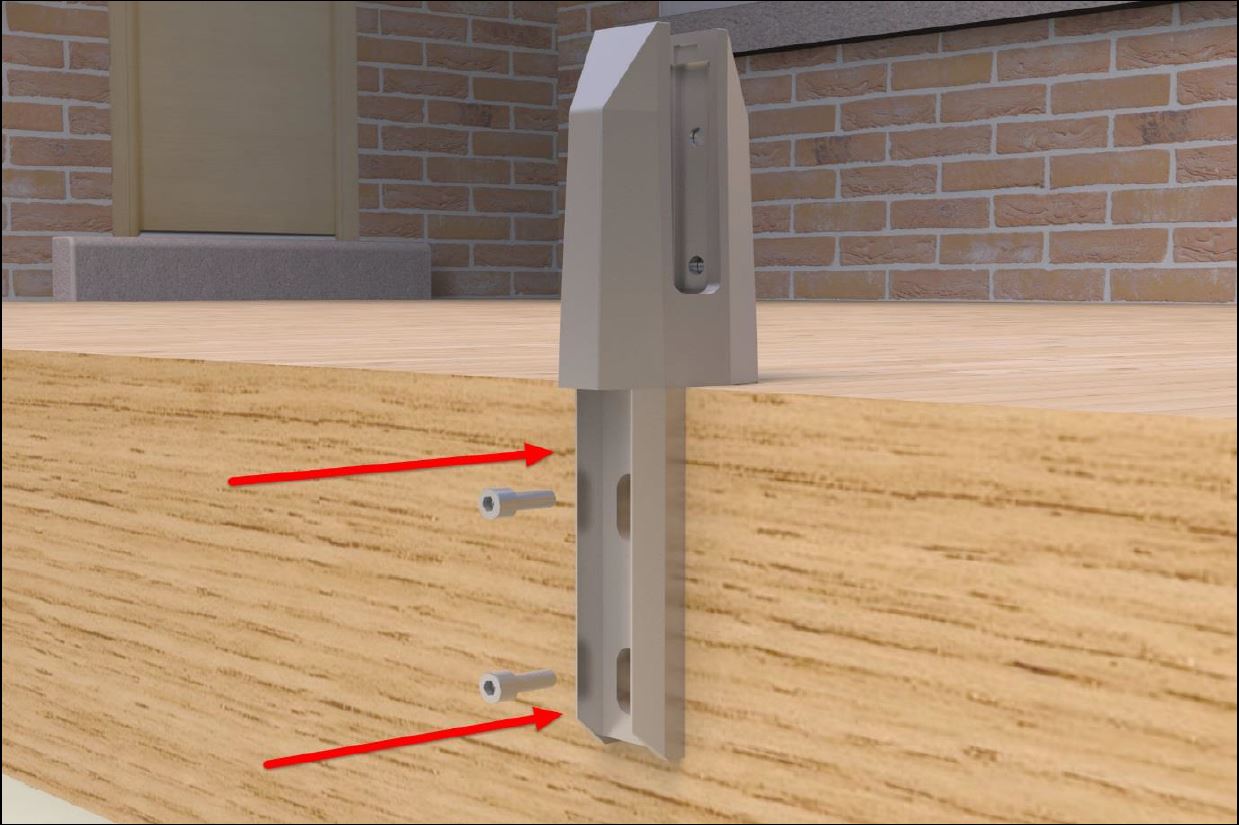

- Installation: Easy to install with minimal tools, featuring a tilt-lock pressure plate system that secures the glass with an Allen key while having the ability to adjust the pitch of the glass with a simple turn of the grub screws.

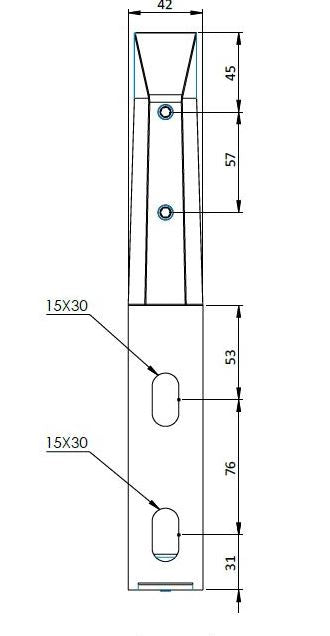

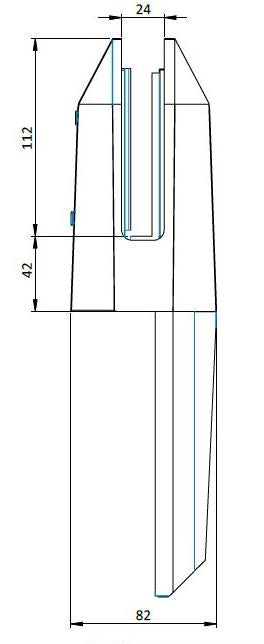

pecifications
- Material: Duplex 2205 Stainless Steel
- Finish: Satin Brushed or Mirror Polish
- Glass Thickness: 12 – 17.52 mm
- Mount Type: Edge / Side Mount
- Height: 165 mm (approx.)
- Tilt Adjustment: ± 3° via Tilt-Lock System
- Application: Indoor & Outdoor use
Why Choose the Edge Mounted Tilt-Lock Spigot
This spigot is the ideal solution for projects where a frameless look and maximum glass exposure are desired. The Edge Mount design ensures structural integrity without compromising aesthetics, while the Tilt-Lock adjustment system simplifies installation and alignment. Perfect for balcony edges, raised decks, and contemporary stairways, this system provides architects, installers, and homeowners with a reliable, visually stunning balustrade solution.
