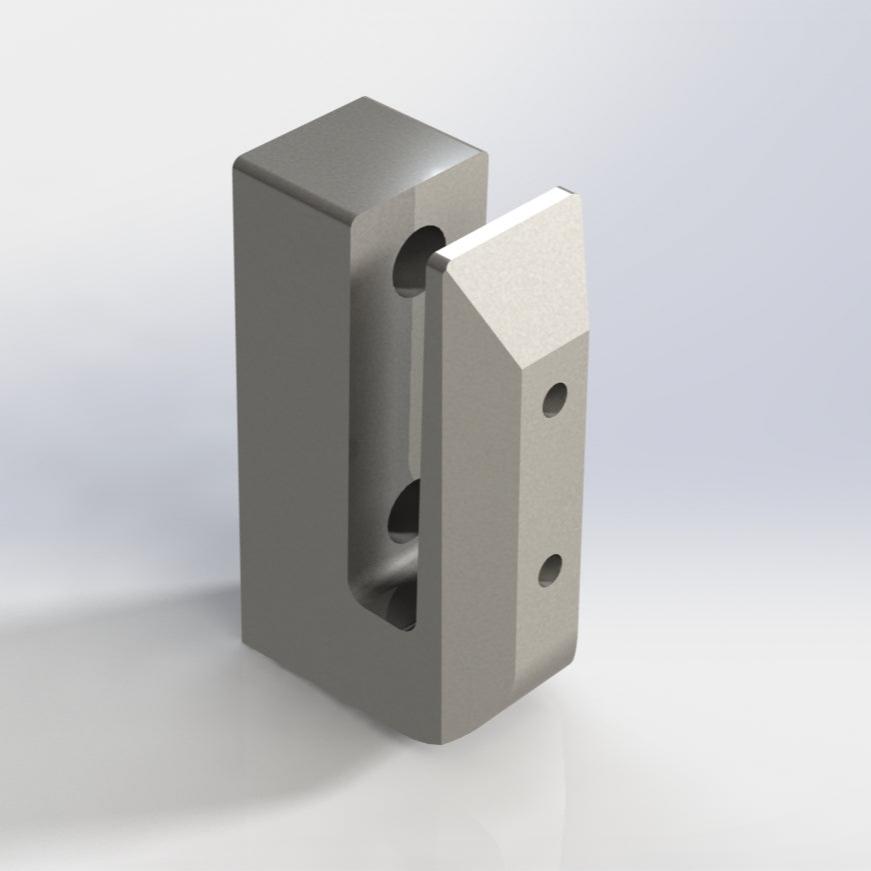

Side Fixed Mini Post Spigot with Tilt-Lock Glass Adjustment System

Elegant, space-saving, and precision-engineered for frameless glass balustrades.
The Side Mounted Mini Post Spigot with Tilt-Lock Glass Adjustment System offers a stylish and robust solution for achieving a completely frameless look while securely fixing glass panels to the side of a structure. Perfect for balconies, terraces, and stairways, this system maximises usable floor space while maintaining full transparency and modern appeal.

Key Features

• Tilt-Lock Glass Alignment System:
  Fine-tune the glass angle quickly and accurately after installation. The Tilt-Lock mechanism allows for ±3° adjustment, ensuring perfect alignment across multiple glass panels without repositioning or re-drilling.
• Strong & Corrosion-Resistant Duplex 2205 Stainless Steel:
  Constructed from Duplex 2205 stainless steel, providing superior mechanical strength and resistance to corrosion — even in harsh coastal or poolside environments.
• Minimalist Side Mount Design:
  Engineered for fixing to the vertical face of balconies, decks, or stair stringers, offering a clean, uninterrupted finish and a true frameless appearance.
• Glass Compatibility:
  Designed for 12 mm to 17.52 mm toughened or laminated glass using compression-fit rubber gaskets for a secure, vibration-free hold.
• Architectural Finish Options:
  Available in Satin Brushed or Mirror Polish finishes to complement contemporary stainless steel and glass aesthetics.
• Load Requirements: When used with the appropriate glass specifications and design these Mini Post meet various loading requirements to meet building regulations Horizontal UDL loadings from 0.36kN/m to 0.74kN/m (low level railing to residential use on raised platforms and balconies).

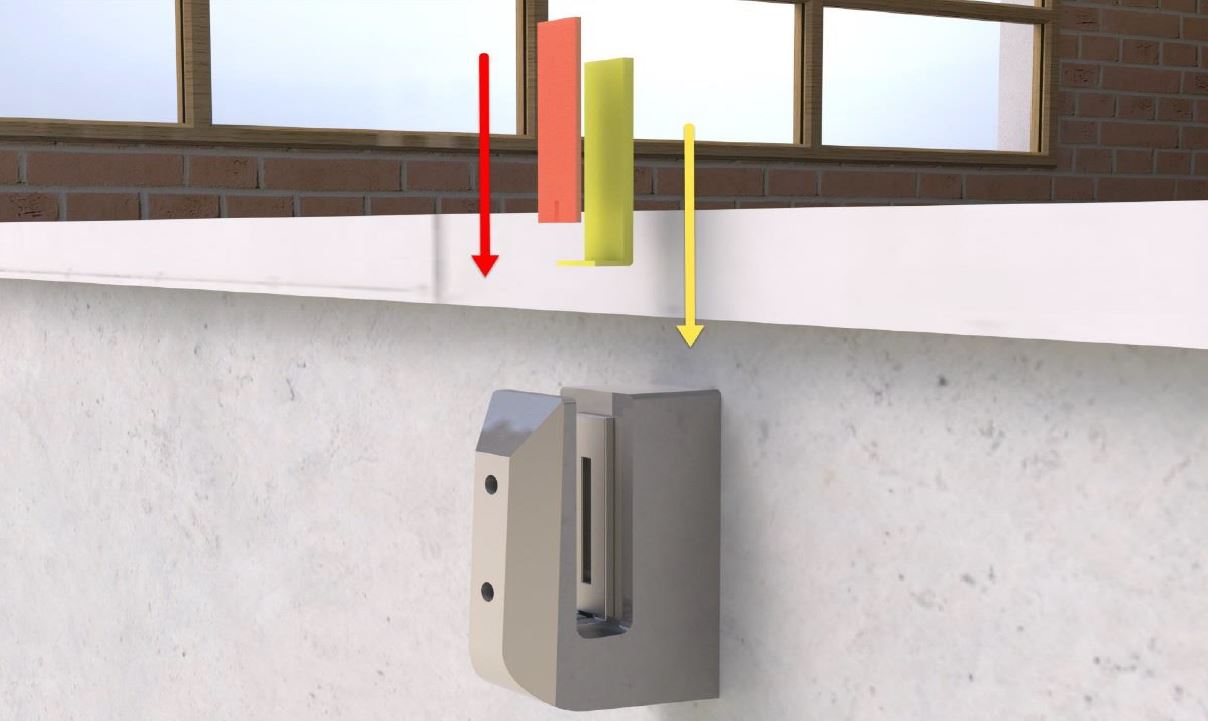

• Installation: Easy to install with minimal tools, featuring a tilt-lock pressure plate system that secures the glass with an Allen key while having the ability to adjust the pitch of the glass with a simple turn of the grub screws.

Specifications

• Material: Duplex 2205 Stainless Steel
• Finish: Satin Brushed or Mirror Polish
• Mount Type: Side Mount
• Glass Thickness: 12 – 17.52 mm

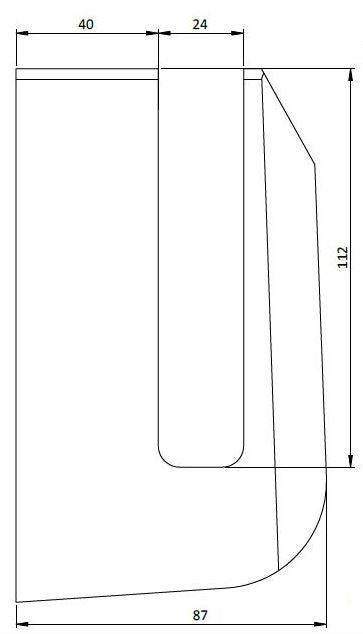

• Height: 165 mm (approx.)
• Tilt Adjustment: ± 3° via Tilt-Lock System
• Applications: Balconies, Terraces, Stairways, Pool Fencing
• Suitable Environments: Indoor & Outdoor

Why Choose the Side Mounted Tilt-Lock Spigot

The Side Mounted Tilt-Lock Spigot combines cutting-edge engineering with sleek architectural form. Its Tilt-Lock system ensures precise, easy glass alignment, while the side-fix configuration saves space and enhances the floating-glass aesthetic. Designed for long-term performance in demanding environments, this spigot is trusted by architects, specifiers, and professional installers seeking exceptional quality and finish.
