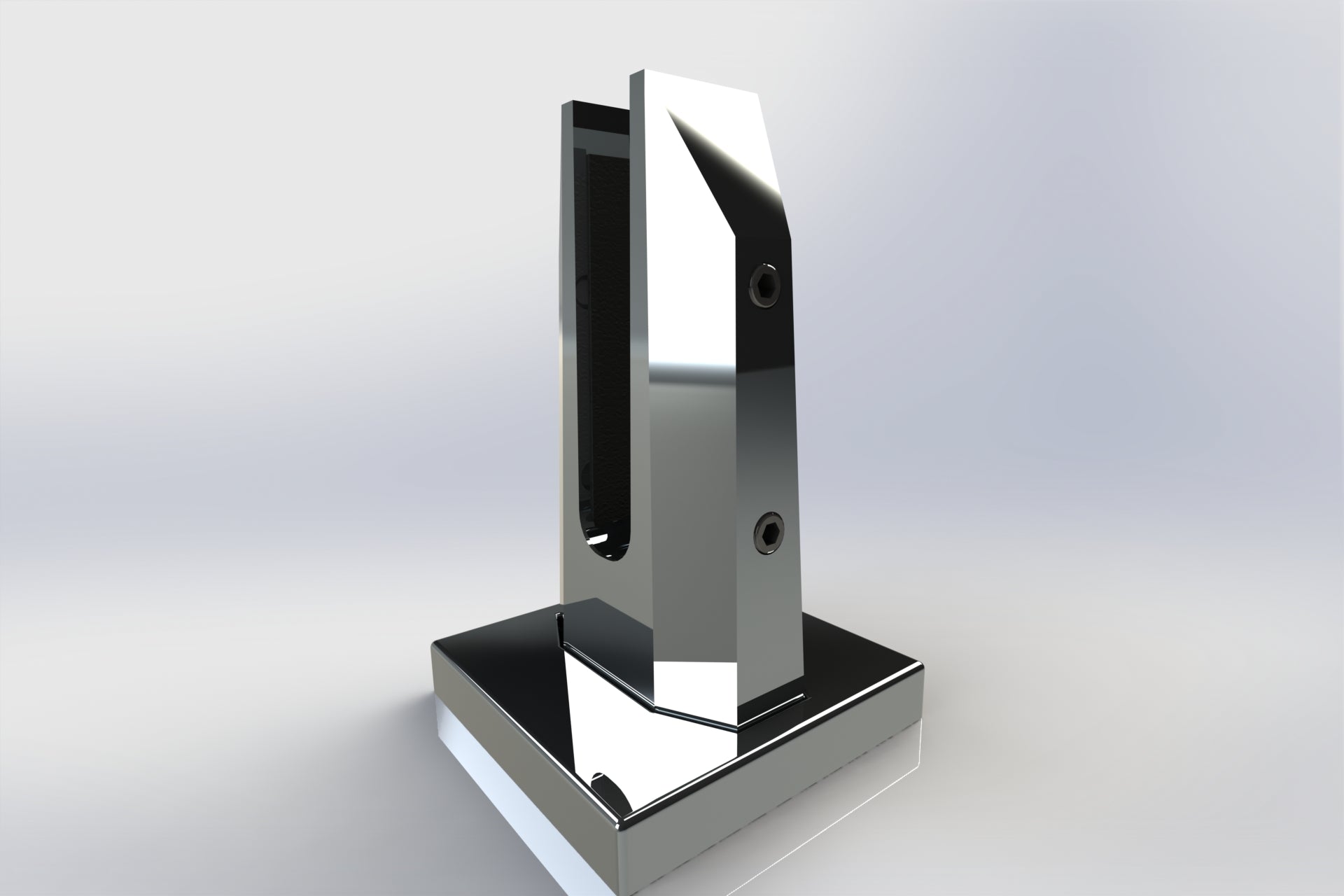

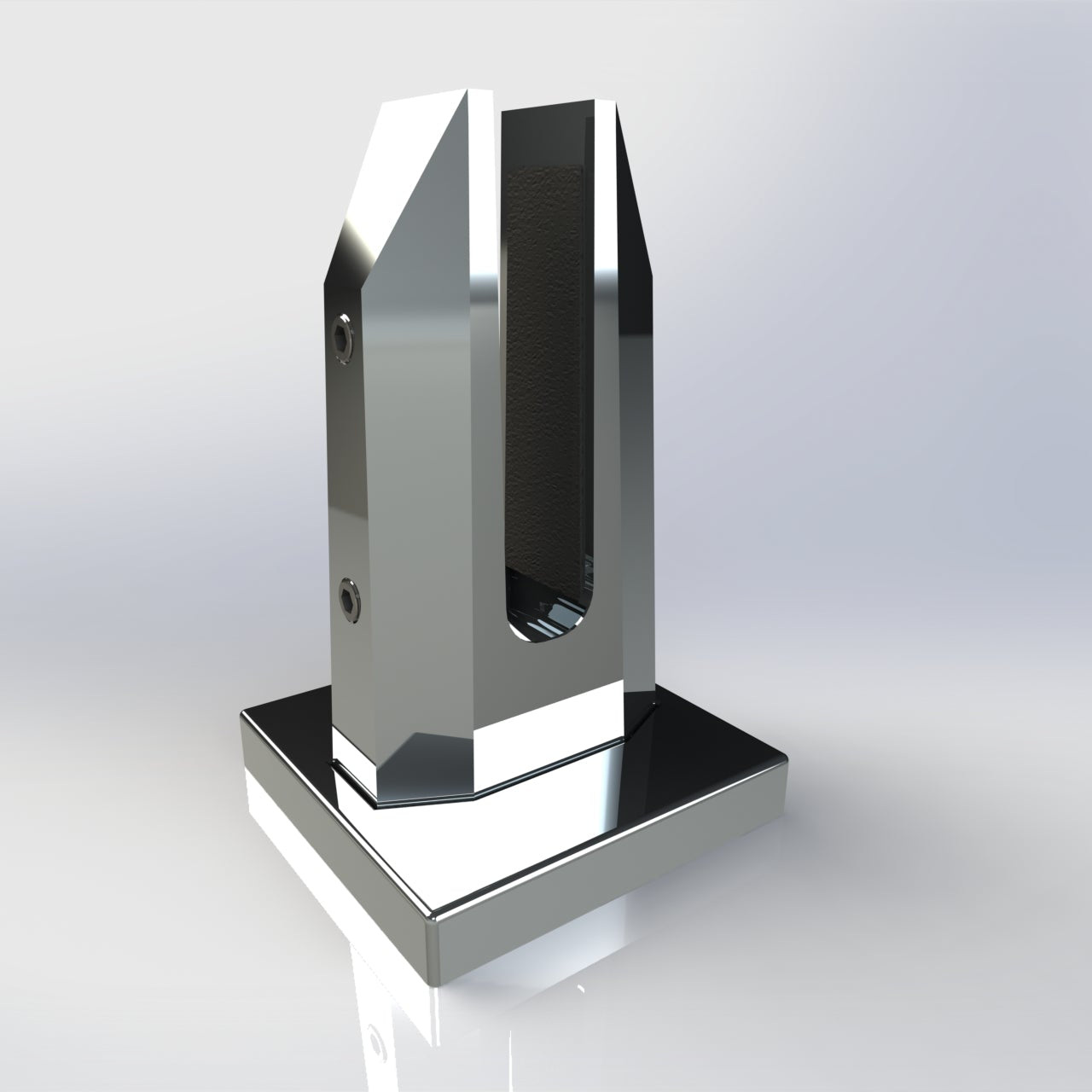

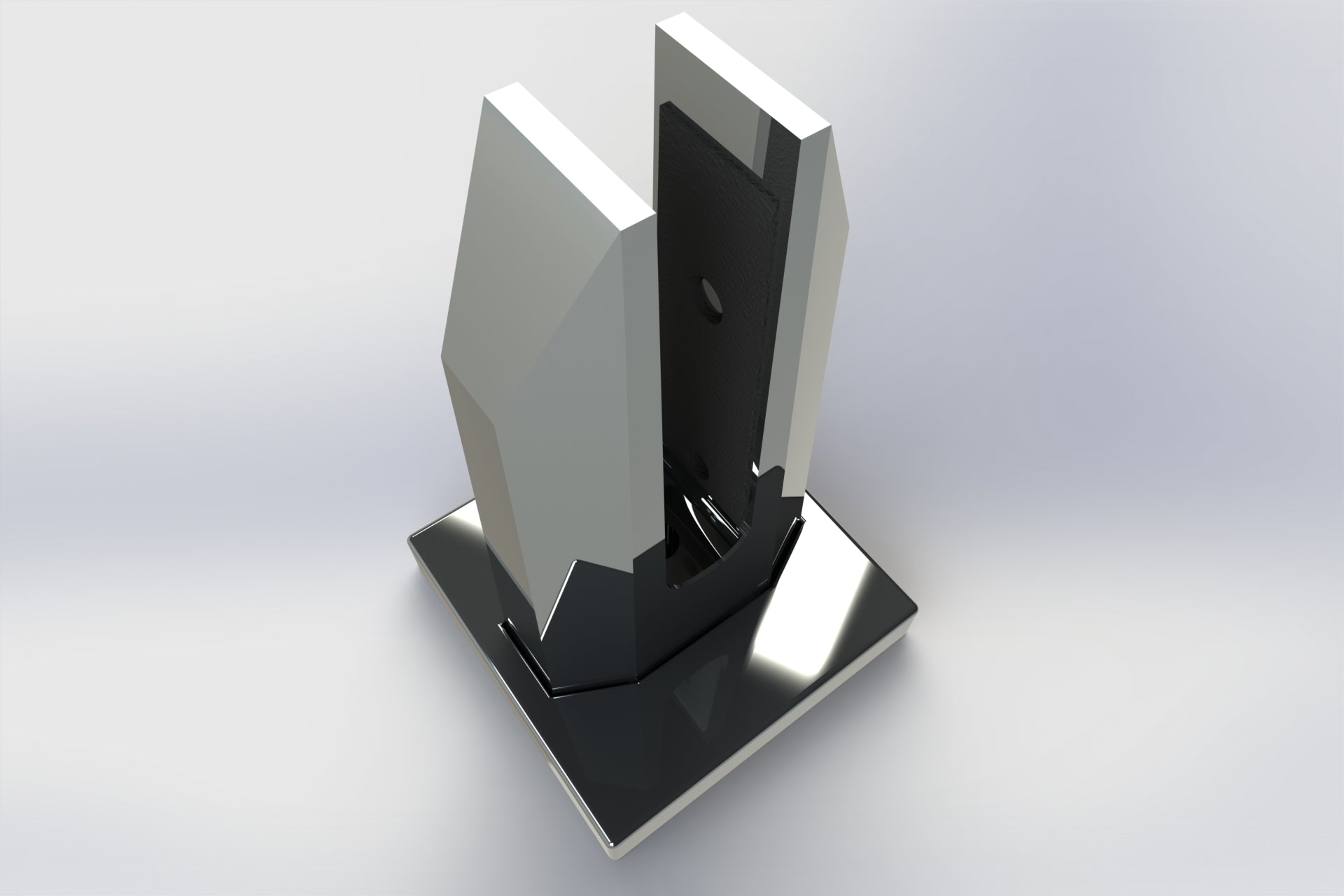

Square Based Mini Post Spigot with Tilt-Lock Glass Adjustment System

Precision-engineered for modern glass balustrades.
The Square Based Mini Post Spigot with Tilt-Lock Glass Adjustment System offers a sleek, minimalist solution for frameless glass balustrades and Juliet balconies. Designed for both internal and external applications, this spigot combines contemporary aesthetics with effortless glass alignment.

Key Features

• Tilt-Lock Adjustment System:
  Achieve perfect glass alignment in seconds. The innovative tilt-lock mechanism allows for precise, tool-assisted adjustment of each glass panel after installation — no need to remove or reposition.
• Modern Square Base Design:
  A clean, angular profile that complements modern architectural styles and delivers a refined, high-end appearance.
• Premium Construction:
  Manufactured from Duplex grade 2205 stainless steel for superior corrosion resistance, making it suitable for coastal and outdoor environments.
• Versatile Installation:
  Ideal for frameless glass balustrades, Juliet balconies, stairways, and pool fencing. Compatible with 12–17.52 mm toughened or laminated glass (depending on gasket selection).
• Surface-Mount Base Plate:
  The square base design provides a stable and secure mounting point on concrete, steel, or timber substrates.
• Load Requirements: When used with the appropriate glass specifications and design these Mini Post meet various loading requirements to meet building regulations Horizontal UDL loadings from 0.36kN/m to 1.5kN/m (low level railing to areas with pedestrian traffic such as walkways).

Specifications

• Material: Duplex 2205 Stainless Steel
• Finish Options: Mirror Polish or Satin Brushed
• Glass Thickness: 12 – 17.52 mm (with interchangeable gaskets)

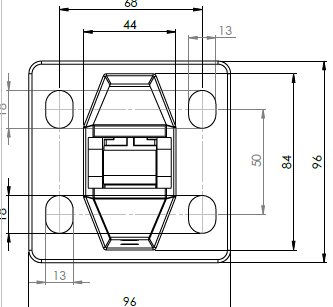

• Base Dimensions: 100 × 100 mm (approx.)
• Glass Height Adjustment: ± 3° via Tilt-Lock system
• Suitable Applications: Indoor & Outdoor
• Building Regulations : Suitable for use at heights meeting Building Regulations UDL (load) requirements of 0.74kN

Why Choose Tilt-Lock Spigots

Traditional spigot systems often require tedious manual alignment. The Tilt-Lock Glass Adjustment System simplifies installation, saving time and ensuring a seamless finish across your balustrade line. It’s the preferred choice of architects, installers, and specifiers seeking precision, durability, and visual excellence.
